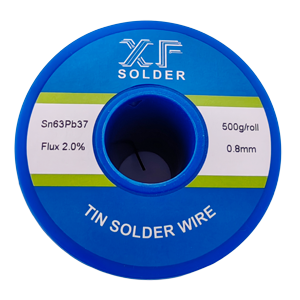

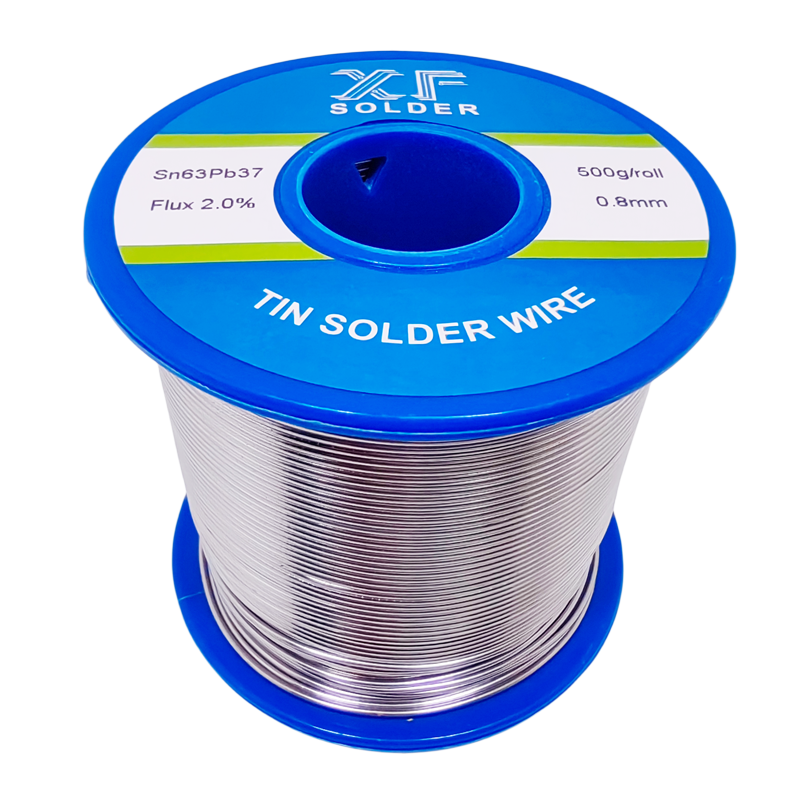

Tin Lead Solder Wire Sn63Pb37 63 37
Tin Lead Solder Wire Sn63Pb37, also known as Solder Wire 63 37, is a soldering material renowned for its precise composition of 63% tin (Sn) and 37% lead (Pb). This solder wire is crafted to offer enhanced fluidity and adhesion, making it a preferred choice for applications requiring strong and reliable solder joints. This solder is cast into wires and winded into rolls, making it handy for soldering. It has been a cornerstone of soldering applications, revered for its optimal balance of melting point and malleability. The alloy forms a eutectic composition with a well-defined melting point, ensuring consistent and efficient soldering. |
Alloy Composition | 63% Tin (Sn), 37% Lead (Pb) |
Melting Point | 183°C |
Flux Type | Rosin based |
Flux Content | 2.0% as standard, or customized flux percentage |
Wire Diameter | 0.5mm to 3.2mm |
Weight | 100g/roll, 200g/roll, 500g/roll to 1kg/roll or customized weight |
Brand | XF Solder or OEM service |
*We also produce solid wire without flux core |
Different Weight Options | Different Wire Diameters | Rosin Flux Core |
Eutectic Alloy The melting point and solidifying point of solder wire 63 37 is same, there is no plastic range for this alloy. That makes it very easy to use even for beginners.
| Excellent Wetting & Fluidity Solder Wire 63 37 has exceptional wetting and flowing properties, making the solder well flow and spread on the soldered components to get nice solder joints. | |
Flux Core It contains neutral rosin flux core and there is no need to apply flux in separate during soldering. The rosin flux core helps the solder to fast melt and evenly flow to cover the soldering area. | Low Melting Temperature The melting point is only 183℃ which is lower than most of other solder alloys. It's easy to melt and handy to use.
| |
Affordable Price Comparing to lead free solder wires, solder wire Sn63Pb37 is at least 30% cheaper. That greatly reduce the manufacturing cost of electronics. | Flexible Packing This solder wire comes in both small package like 100g/roll up to big package like 1kg/roll. That provides flexibility for customers to select an amount without wastage. |
Electronics Production: Solder Wire 63 37 is used in electronics assembly, ensuring reliable connectivity in PCBs and components. Such televisions, smartphones, laptops and computers
refrigerators, washing machines, LED lighting.
Industrial Devices: Solder wire Sn63Pb37 is used for assembly of electrical parts inside the industrial devices, such as solar panels, machine control board, auto car components etc.
Repairs and DIY projects: It's also used for repairing of electronics or electrical devices, or for hobbyists to use for their DIY projects.
Manual Soldering | Automatic Soldering | Metal Joinery |
Manual soldering: we need solder irons or soldering stations to conduct the manual soldering. It’s flexible way of manufacturing that allows workers to carry out the soldering work basing on requirements.
Automatic soldering: Ideal for mass production, automatic soldering machines feed and melt the solder wire, ensuring standardized joints.
Use in a Well-Ventilated Area: Always solder in a well-ventilated space, such as a fume hood or near an open window, and use exhausting fan. Proper ventilation helps to dissipate harmful fumes and reduce the risk of inhaling lead vapors.
Wear Personal Protective Equipment (PPE): Consider wearing appropriate personal protective equipment, including safety glasses, gloves, and a lab coat or apron, to minimize skin and eye contact with solder and flux.
Avoid Ingestion and Hand-to-Mouth Contact: Never eat, drink, or smoke while working with leaded solder. Wash your hands thoroughly after handling solder and before eating or touching your face.
Tin Lead Solder Wire Sn63Pb37 63 37
Tin Lead Solder Wire Sn63Pb37, also known as Solder Wire 63 37, is a soldering material renowned for its precise composition of 63% tin (Sn) and 37% lead (Pb). This solder wire is crafted to offer enhanced fluidity and adhesion, making it a preferred choice for applications requiring strong and reliable solder joints. This solder is cast into wires and winded into rolls, making it handy for soldering. It has been a cornerstone of soldering applications, revered for its optimal balance of melting point and malleability. The alloy forms a eutectic composition with a well-defined melting point, ensuring consistent and efficient soldering. |
Alloy Composition | 63% Tin (Sn), 37% Lead (Pb) |
Melting Point | 183°C |
Flux Type | Rosin based |
Flux Content | 2.0% as standard, or customized flux percentage |
Wire Diameter | 0.5mm to 3.2mm |
Weight | 100g/roll, 200g/roll, 500g/roll to 1kg/roll or customized weight |
Brand | XF Solder or OEM service |
*We also produce solid wire without flux core |
Different Weight Options | Different Wire Diameters | Rosin Flux Core |
Eutectic Alloy The melting point and solidifying point of solder wire 63 37 is same, there is no plastic range for this alloy. That makes it very easy to use even for beginners.
| Excellent Wetting & Fluidity Solder Wire 63 37 has exceptional wetting and flowing properties, making the solder well flow and spread on the soldered components to get nice solder joints. | |
Flux Core It contains neutral rosin flux core and there is no need to apply flux in separate during soldering. The rosin flux core helps the solder to fast melt and evenly flow to cover the soldering area. | Low Melting Temperature The melting point is only 183℃ which is lower than most of other solder alloys. It's easy to melt and handy to use.
| |
Affordable Price Comparing to lead free solder wires, solder wire Sn63Pb37 is at least 30% cheaper. That greatly reduce the manufacturing cost of electronics. | Flexible Packing This solder wire comes in both small package like 100g/roll up to big package like 1kg/roll. That provides flexibility for customers to select an amount without wastage. |
Electronics Production: Solder Wire 63 37 is used in electronics assembly, ensuring reliable connectivity in PCBs and components. Such televisions, smartphones, laptops and computers
refrigerators, washing machines, LED lighting.
Industrial Devices: Solder wire Sn63Pb37 is used for assembly of electrical parts inside the industrial devices, such as solar panels, machine control board, auto car components etc.
Repairs and DIY projects: It's also used for repairing of electronics or electrical devices, or for hobbyists to use for their DIY projects.
Manual Soldering | Automatic Soldering | Metal Joinery |
Manual soldering: we need solder irons or soldering stations to conduct the manual soldering. It’s flexible way of manufacturing that allows workers to carry out the soldering work basing on requirements.
Automatic soldering: Ideal for mass production, automatic soldering machines feed and melt the solder wire, ensuring standardized joints.
Use in a Well-Ventilated Area: Always solder in a well-ventilated space, such as a fume hood or near an open window, and use exhausting fan. Proper ventilation helps to dissipate harmful fumes and reduce the risk of inhaling lead vapors.
Wear Personal Protective Equipment (PPE): Consider wearing appropriate personal protective equipment, including safety glasses, gloves, and a lab coat or apron, to minimize skin and eye contact with solder and flux.
Avoid Ingestion and Hand-to-Mouth Contact: Never eat, drink, or smoke while working with leaded solder. Wash your hands thoroughly after handling solder and before eating or touching your face.
Rosin core solder is a type of solder that is commonly used in electronics and other applications where precise soldering is required. It is made up of a mixture of metals, typically tin and lead, that are melted together to create a cohesive and conductive material. The solder is coated with a layer of rosin, which helps to improve the flow and adhesion of the solder to the materials being joined.
Resin Cored Tin SolderResin cored tin solder is a type of soldering material that is commonly used in a variety of applications, including electronics, plumbing, and jewelry making. This type of solder is made from a combination of tin and other metals, and is fluxed with a resin core that helps to
Sn63 solder is a type of alloy that is composed of 63% tin and 37% lead. Tin has a low melting point, good electrical conductivity, and low toxicity, making it a popular choice for soldering. Lead, on the other hand, has a high melting point and is less expensive than tin. The combination of tin and lead in Sn63 soldering lead results in a solder with a melting point of 183°C, making it suitable for use in low temperature applications.
Our factory XF Solder is equipped with cutting-edge technology and staffed by skilled professionals who ensure the production of high-quality solder products.
