In the intricate world of electronics manufacturing, repair, and prototyping, the choice of solder is fundamental. Among the various alloys available, 40 60 solder wire tinlead remains a historically significant and widely used material for specific applications. This guide delves into the comprehensive details of this classic alloy, particularly focusing on the popular 40 60 solder wire 1.0mm diameter variant, complete with a flux core and available in a range of practical spool weights from 400g to 1000g. Whether you are a seasoned engineer, a technician, or an electronics hobbyist, understanding the properties, applications, and optimal use of this solder is key to achieving reliable and strong electrical connections. The combination of 40% tin and 60% lead offers a unique balance of properties that, while subject to modern regulations, continues to be relevant in certain non-restricted electronic sectors.
40 60 solder wire tinlead is an alloy composed of 40% tin (Sn) and 60% lead (Pb). Unlike the standard solder wire 63/37 or solder wire 60/40 eutectic solders that melt at a single temperature, the 40/60 formulation has a plastic range. This means it transitions from solid to liquid over a small temperature span, which can be advantageous for specific manual soldering techniques where a slight "working" time is needed before full solidification. The inclusion of a flux core is critical; it is a reducing agent that cleans the metal surfaces of oxides during the soldering process, ensuring a strong, conductive, and reliable bond. The 1.0mm diameter is a versatile size, suitable for a broad range of component leads and PCB pads commonly found in electronics.
The 40 60 solder wire tinlead alloy provides a specific set of mechanical and thermal properties. It has a melting range of approximately 183°C (361°F) to 188°C (370°F), offering that brief plastic phase. The resulting joints are known for their good shear strength and fatigue resistance. The high lead content gives the solder a slower wetting action compared to tin-richer alloys, but it produces very shiny and reliable joints when used correctly with appropriate flux.
The performance of any solder wire is heavily dependent on its flux core. 40 60 solder wire with flux core typically contains a rosin-based (RA) or mildly activated rosin (RMA) flux. This core is engineered to:
Clean Surfaces: It removes oxides from the copper traces and component leads during heating.
Promote Wetting: It lowers the surface tension of the molten solder, allowing it to flow evenly over the joint.
Protect During Soldering: It shields the heated area from re-oxidizing until the solder solidifies.
For 40 60 solder wire for electronics, the flux core is formulated to be non-corrosive and leave minimal residue, which is often non-conductive and can be left on the board unless strict cleanliness is required. The 1.0mm diameter wire contains an optimal amount of flux to ensure thorough cleaning and flow for its intended joint sizes.
Diameter selection is crucial for efficiency and joint quality. The 40 60 solder wire 1.0mm diameter is considered a standard, all-purpose size for through-hole and larger surface-mount soldering. Here’s why it’s so popular:
Versatility: It holds enough solder to quickly form joints on medium to large components like connectors, terminals, and large capacitors.
Control: It is thin enough to allow for reasonable control in manual soldering, making it suitable for both beginners and professionals.
Efficiency: The volume of solder delivered per unit length is well-suited for the common pad and lead sizes in consumer electronics, power supplies, and automotive electronics.
Using a diameter that is too large can lead to clumsy application and cold joints, while a diameter too small can slow down work on larger joints. For detailed SMT work, a smaller diameter like 0.7mm or 0.5mm might be preferred, but for general-purpose work, 40 60 solder wire 1.0mm is an excellent choice.

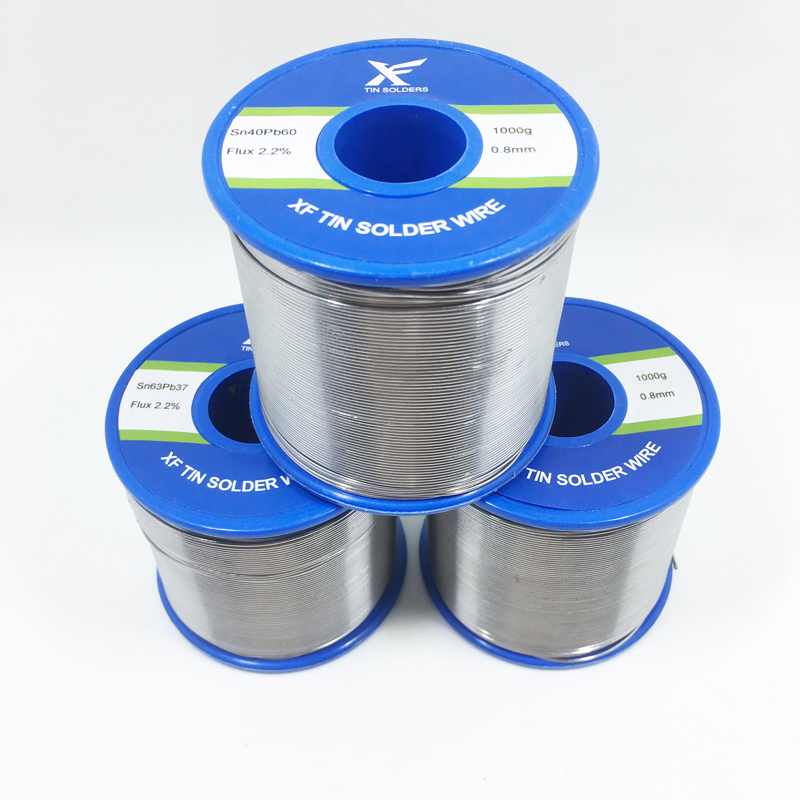

Selecting the right spool weight balances cost, convenience, and storage. 40 60 solder wire tinlead is commonly packaged in a range of weights to suit different users.

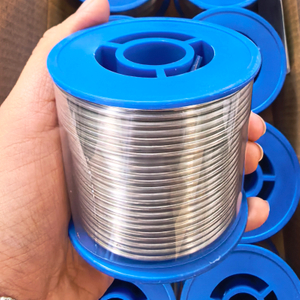

The 40 60 solder wire 1.0mm 400g and 40 60 solder wire 1.0mm 500g spools are ideal for hobbyists, occasional repair technicians, or for trying out the alloy. They are compact, easy to handle, and reduce waste if the solder sees infrequent use. The 500g size offers a better value per gram for active hobbyists or small workshops.
For more frequent users, such as small to medium repair shops or educational institutions, the 40 60 solder wire 1.0mm 800g and 40 60 solder wire 1.0mm 900g spools offer greater volume and better economics. They reduce the frequency of spool changes and are a cost-effective solution for consistent, medium-volume soldering tasks.
The 40 60 solder wire 1.0mm 1000g spool is the standard bulk option for professional settings, manufacturing lines, or high-volume repair centers. It provides the lowest cost per gram and maximizes productivity by minimizing downtime for material replacement. Proper storage in a dry environment is key to maintaining the solder's performance over the longer usage period of a 1kg spool.

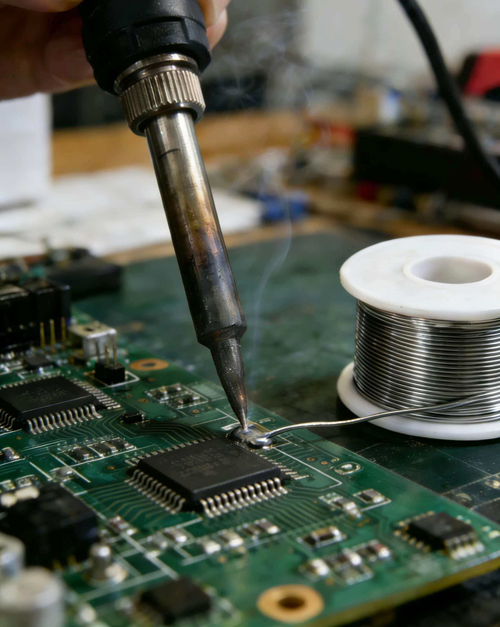

40 60 solder wire for electronics finds its niche in several areas. Its properties make it suitable for:
Repair and Rework: Especially on older equipment originally manufactured with lead-based solders.
Certain Industrial and Automotive Electronics: Where the alloy's specific mechanical properties are valued and regulations permit its use.
Prototyping and Hobbyist Projects: Where its ease of use and reliable joints are appreciated.
Applications Less Sensitive to Vibrations: The alloy performs well in general electrical connections.
It is crucial to note that the use of lead-based solders like 40 60 solder wire tinlead is prohibited in many consumer electronics applications in the EU (under RoHS) and other regions, except for specific exempted categories. Always verify the environmental and safety regulations applicable to your project or location.
This section addresses common queries in a clear FAQ format.
No, standard 40 60 solder wire tinlead is not compliant with the EU's Restriction of Hazardous Substances (RoHS) directive, which restricts the use of lead in most consumer electronics. It is intended for use in exempted applications (e.g., certain military, aerospace, automotive, or legacy repair) or in regions where such regulations do not apply. For RoHS-compliant work, lead-free alloys like SAC305 (Sn96.5/Ag3.0/Cu0.5) are required.
The primary difference is the tin-to-lead ratio. 40 60 solder wire tinlead (40% Sn, 60% Pb) has a plastic melting range and higher lead content, resulting in a slightly higher final melting point and different wetting characteristics. 60/40 solder (60% Sn, 40% Pb) is closer to eutectic, has a narrower plastic range, melts at a slightly lower temperature, and generally wets faster. Both contain lead and are subject to the same regulations.
As discussed, the 40 60 solder wire 1.0mm diameter offers an ideal balance for general-purpose work. It provides sufficient solder volume for robust joints without being cumbersome. For very fine-pitch IC work, a smaller diameter like 0.5mm is better. For large wires or terminals, a 1.5mm or larger might be more efficient. The 1.0mm size is the versatile "go-to" for most through-hole and larger SMD components.
Consider your usage frequency and storage.
Hobbyist/Infrequent Use: Opt for 40 60 solder wire 1.0mm 400g or 500g.
Active Workshop/Medium Use: The 40 60 solder wire 1.0mm 800g or 900g offers better value.
Professional/High-Volume Use: The 40 60 solder wire 1.0mm 1000g (1kg) spool is the most economical.
Most 40 60 solder wire with flux core for electronics uses Rosin (RA) or Mildly Activated Rosin (RMA) flux. These fluxes are generally non-corrosive, and the residue is often non-conductive and can be left on the board for many applications, providing some post-soldering protection. However, for high-reliability electronics, aerospace, or where aesthetics are critical, the residue should be cleaned using an appropriate rosin flux remover (isopropyl alcohol is common).
A temperature setting between 320°C and 370°C (608°F - 698°F) is typically effective for 40 60 solder wire for electronics. The iron tip must be hot enough to quickly melt the solder and heat the joint, preventing cold joints, but not so hot as to degrade the flux instantly or damage components. Always start at a lower temperature and adjust as needed.
To achieve perfect joints with your 40 60 solder wire 1.0mm, follow these guidelines:
Cleanliness: Ensure both the soldering iron tip and the components to be soldered are clean.
Temperature Control: Use a temperature-controlled iron set to the appropriate range.
The Process: Apply the iron tip to heat both the component lead and the PCB pad simultaneously. Then, feed the 40 60 solder wire with flux core into the heated joint, not directly onto the iron tip. Allow the solder to flow freely and cover the joint.
Timing: The entire process should take 1-3 seconds to avoid thermal damage.
Inspection: A good joint will be smooth, shiny, and concave in shape, fully covering the pad and surrounding the lead.
40 60 solder wire tinlead with its integral flux core represents a classic and effective solution for a range of electronic soldering applications where its use is permissible and its properties are advantageous. The 1.0mm diameter provides an excellent balance of control and efficiency, making 40 60 solder wire 1.0mm a highly versatile choice. By selecting the appropriate spool weight—be it the convenient 40 60 solder wire 1.0mm 400g, the popular 40 60 solder wire 1.0mm 500g, the substantial 40 60 solder wire 1.0mm 800g or 900g, or the professional bulk 40 60 solder wire 1.0mm 1000g—you can match your inventory to your needs efficiently. Always prioritize safety, be aware of relevant regulations regarding lead-based products, and follow best practices to ensure strong, durable, and reliable solder joints in all your electronics projects.
