In the intricate world of electronics manufacturing and repair, the choice of solder is a foundational decision that impacts the quality, reliability, and efficiency of the final product. Among the various alloys available, Resin Core Solder Wire 40Sn 60Pb stands as a time-tested and reliable workhorse. This specific solder, composed of 40% Tin (Sn) and 60% Lead (Pb), is renowned for creating strong, durable joints with a favorable melting point. The inclusion of a resin-based flux core is what elevates its functionality, ensuring clean, oxidation-free connections during the PCB assembly process. This guide delves deep into the specifics of Resin Core Solder Wire 40 60, particularly in the popular 1.2mm diameter, available in various reel weights including 250g, 400g, 500g, and 800g, to help you select the perfect material for your projects.

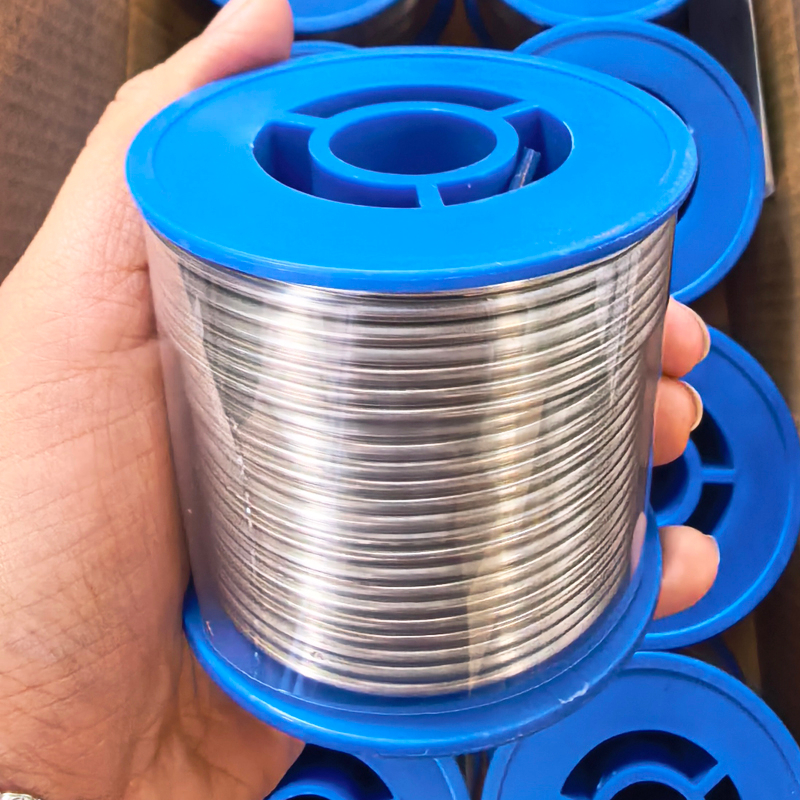

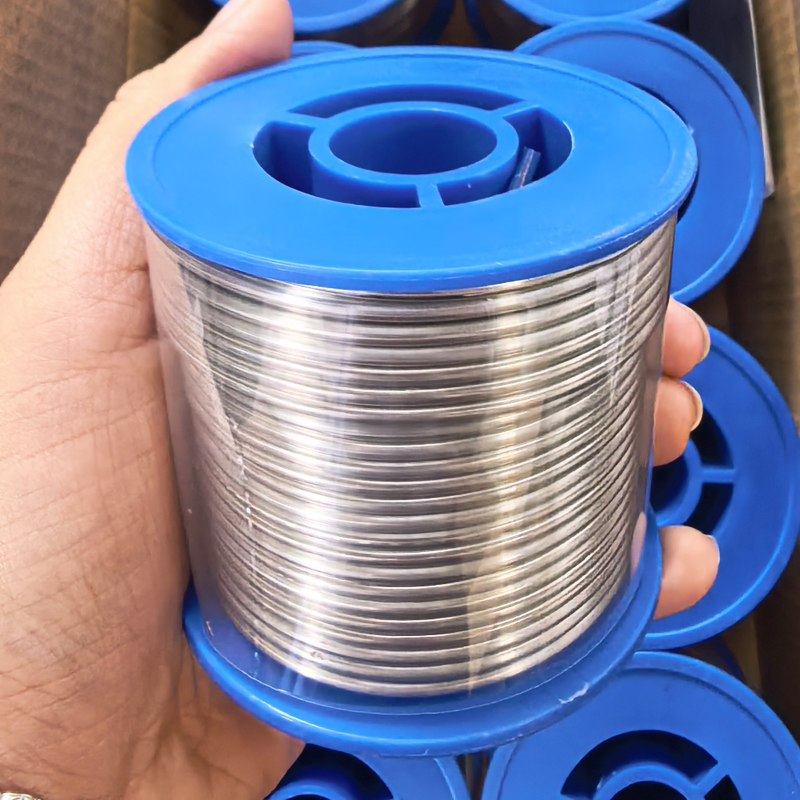

Resin Core Solder Wire is a composite material designed for ease of use and effectiveness. The wire's external sheath is the solder alloy itself—in this case, the classic 40/60 tin-lead ratio. The core of the wire is filled with a rosin (resin) flux. This built-in flux is activated by heat during soldering and serves critical functions: it cleans the metal surfaces of oxides, prevents re-oxidation during the soldering process, and improves the wetting action, allowing the molten solder to flow smoothly and adhere to the component leads and PCB pads.
The Solder Wire 40Sn 60Pb alloy offers a distinct set of properties that make it suitable for a wide range of applications:
Optimal Melting Point: With a melting range of approximately 183°C to 188°C (361°F to 370°F), it provides a good working window that is lower than lead-free alternatives, reducing thermal stress on sensitive components.
Excellent Wettability: This alloy is known for its superior wetting characteristics, leading to smooth, shiny fillets that are indicative of a strong metallurgical bond.
Eutectic vs. Non-Eutectic: Unlike eutectic solder (63Sn/37Pb) which melts and solidifies at a single temperature, Resin Core Solder Wire 40 60 has a plastic range. This brief period between liquidus and solidus can be beneficial for manual adjustments but requires a steady hand to avoid "cold joints."
Selecting the correct diameter and package size is crucial for efficiency and cost-effectiveness. The Resin Core Solder Wire 40 60 1.2mm variant is one of the most versatile choices on the market.
The 1.2mm diameter is a fantastic all-rounder. It is substantial enough to deliver ample solder volume for through-hole components, ground planes, and larger joints quickly, yet it is still precise enough for larger surface-mount technology (SMT) pads and multi-lead components. For many technicians and small to medium-scale assembly lines, Resin Core Solder Wire 40 60 1.2mm becomes the default choice, balancing speed and control.
The reel weight you choose should align with your usage frequency and type of work.
Resin Core Solder Wire 40 60 1.2mm 250g: Ideal for hobbyists, occasional repair technicians, or for specialized, low-volume work. This smaller reel is manageable, reduces waste if experimenting, and is easy to store.
Resin Core Solder Wire 40 60 1.2mm 400g: A great middle-ground option for frequent hobbyists or small repair shops that need more material than a 250g reel offers without committing to a large industrial spool.
Resin Core Solder Wire 40 60 1.2mm 500g: Perhaps the most popular weight for professional repair shops and small to medium batch PCB assembly. It offers excellent value and reduces the frequency of reel changes.
Resin Core Solder Wire 40 60 1.2mm 800g: Designed for high-volume environments, such as dedicated assembly lines or large-scale repair facilities. The 800g reel maximizes uptime and offers the best cost per gram.
The primary domain of this material is in the creation and maintenance of electronic circuits. Its properties make it exceptionally useful across various scenarios.
For prototype development, low-volume production, or rework stations, manual soldering is key. Resin Core Solder Wire for PCB Assembly simplifies the process. The flux core eliminates the need for a separate flux application step in most cases, streamlining the workflow. Whether assembling through-hole components or performing hand placement and soldering of SMD parts, the 1.2mm wire provides consistent results.
Repair work demands reliability and the ability to work on oxidized or compromised boards. The active rosin flux in Resin Core Solder Wire 40Sn 60Pb is excellent at cleaning old pads and component leads, making it the preferred choice for desoldering and resoldering components, repairing broken traces, or adding wire bridges. Its predictable behavior is trusted by repair technicians worldwide.
Why has this specific alloy and type remained so popular, even with the rise of lead-free mandates?
Ease of Use: The flux-core design is a significant usability advantage, making it a one-step material for many joints.
High-Quality Joints: Produces strong, ductile, and reliable solder joints with a characteristic shiny appearance when done correctly.
Forgiving Nature: Compared to some lead-free alloys, Resin Core Solder Wire 40 60 is more forgiving of minor variations in technique and temperature.
Proven Long-Term Reliability: Decades of field data support the long-term mechanical and electrical reliability of 40/60 tin-lead solder joints in a wide range of environments.
Yes, absolutely. While RoHS regulations restrict its use in commercial new-build electronics in many regions, it remains extensively used in automotive, aerospace, military, and industrial electronics where reliability is paramount and exemptions apply. It is also the standard for repair, rework, and prototyping across all sectors due to its superior workability.
The core in Resin Core Solder Wire is typically a rosin (from pine trees) or rosin-based synthetic flux. Residues are generally non-corrosive and can often be left on the board unless strict cleanliness is required. Water-soluble flux cores use organic acids and leave residues that are conductive and corrosive, requiring thorough cleaning after soldering.
Consider your volume. For occasional use, start with a Resin Core Solder Wire 40 60 1.2mm 250g reel. For daily professional use, the Resin Core Solder Wire 40 60 1.2mm 500g offers the best balance. For continuous production, the Resin Core Solder Wire 40 60 1.2mm 800g reel provides maximum efficiency.
Yes, the Resin Core Solder Wire 40 60 1.2mm can be used for SMD rework and hand-soldering. For very fine-pitch components (like under 0.5mm pitch), a thinner diameter (e.g., 0.5mm or 0.7mm) might offer better control, but 1.2mm is perfectly suitable for larger SMDs like capacitors, resistors, and SOIC packages.
A tip temperature between 320°C and 380°C (608°F - 716°F) is typically ideal for Solder Wire 40Sn 60Pb. This ensures quick melting and good flow without excessive oxidation of the tip or the solder. Always use a clean, well-tinned tip.
To maintain the performance of your Resin Core Solder Wire, proper storage is essential. Keep reels in a cool, dry place to prevent oxidation of the wire and degradation of the flux core. While the rosin flux is less aggressive, it is good practice to wash hands after handling and to ensure adequate ventilation when soldering to avoid inhaling fumes. Always adhere to local regulations regarding the use and disposal of lead-containing materials.
Selecting the correct soldering materials is as crucial as possessing the right skills. Resin Core Solder Wire 40Sn 60Pb, particularly in the versatile 1.2mm diameter, remains an indispensable tool for achieving high-quality, reliable solder joints in PCB assembly and repair. By understanding the implications of the 40/60 alloy composition and matching the reel weight—be it a convenient Resin Core Solder Wire 40 60 1.2mm 250g for your bench or an efficient Resin Core Solder Wire 40 60 1.2mm 500g for your production line—to your specific needs, you can significantly enhance your workflow efficiency and output quality. For professionals and enthusiasts committed to excellence in electronics, this solder wire continues to be a trusted and effective solution.
