In the intricate world of electronics manufacturing and repair, the choice of solder material and its form factor is not merely a detail—it is a fundamental decision that dictates the quality, reliability, and efficiency of the assembly process. Among the myriad of available alloys, Tin 60 Lead 40 (Sn60Pb40) stands as a time-tested and exceptionally reliable workhorse. This eutectic alloy, comprising 60% tin and 40% lead, offers a precise melting point of 188°C (370°F) and excellent wetting properties, making it a preferred choice for a vast range of applications, from consumer electronics to industrial control systems. However, selecting the right alloy is only half the battle. The physical diameter of the solder wire plays an equally critical role in achieving perfect, consistent, and reliable solder joints. This comprehensive guide delves deep into the specifics of Tin 60 40 solder wire, with a detailed focus on the nine most critical diameters: tin 0.5mm, tin 0.6mm, tin 0.7mm, tin 0.8mm, tin 0.9mm, tin 1mm, tin 1.2mm, tin 1.6mm, and tin 1.8mm. We will explore the unique applications, advantages, and techniques associated with each size, providing you with the knowledge to select the perfect wire for any electronics assembly task.
Tin 60 40 is a eutectic alloy, meaning it transitions directly from a solid to a liquid state at a single, specific temperature without passing through a plastic phase. This characteristic is invaluable in electronics assembly. It allows for faster soldering cycles, reduces the risk of cold solder joints (a common defect caused by movement during the plastic phase), and ensures a smooth, shiny, and reliable joint upon solidification. While lead-free alternatives have gained prominence due to regulatory requirements (RoHS), Sn60Pb40 is still widely used in exempted sectors such as aerospace, automotive, medical devices, and high-reliability military hardware, where its proven performance and superior manufacturability are non-negotiable.
The success of Tin 60 40 hinges on its balanced properties. The 60% tin content provides excellent wetting action, allowing the molten solder to flow smoothly over copper pads and component leads, forming a strong metallurgical bond. The 40% lead content lowers the overall melting point compared to pure tin, reduces surface tension for better flow, and improves the mechanical shock resistance of the final joint. When paired with a high-quality rosin core flux, this alloy effectively removes oxides and ensures a clean, reliable connection every time.
Selecting the correct solder wire diameter is a crucial step often overlooked by beginners. Using wire that is too thick for a small joint leads to excess solder, potential bridging between adjacent pins, and prolonged heat application that can damage sensitive components. Conversely, using wire that is too thin for a large joint or a hefty ground plane results in inefficient soldering, requiring multiple applications of wire and increasing the thermal stress on the component. The diameter directly influences the volume of solder deposited per unit time. By matching the tin wire diameter to the pad size and thermal mass of the joint, technicians achieve cleaner results, improve throughput, and enhance joint reliability. The following sections provide a detailed breakdown of each standard diameter.
Tin 0.5mm solder wire represents the finest standard diameter commonly available and is the tool of choice for the most demanding micro-soldering tasks. This ultra-fine wire is indispensable for:
0402, 0201, and 01005 Surface-Mount Device (SMD) Components: Delivering the precise solder volume needed for these miniature components without causing bridges.
Fine-Pitch Integrated Circuits (ICs): Soldering pins on ICs with pitches of 0.4mm or less, such as certain QFP and TSSOP packages.
Jewelry Electronics and Micro-Discrete Components: Working with tiny LEDs, sensors, and repair of compact wearable devices.
Using tin 0.5mm requires a steady hand, a temperature-controlled soldering iron with a very fine tip, and excellent visibility, often aided by a microscope.
Slightly more robust than its 0.5mm counterpart, tin 0.6mm wire is a staple on the workbench of any technician handling modern consumer electronics. It offers a superb balance between precision and solder volume, making it ideal for:
Common SMD Components: Perfect for resistors, capacitors, and inductors in 0603 and 0805 packages.
Medium-Pitch ICs: Effectively used on ICs with 0.5mm to 0.65mm pitch.
General PCB Rework and Repair: Its versatility makes it an excellent "go-to" fine wire for a wide array of through-hole and SMD touch-up work.
For many professionals, tin 0.6mm is the default starting point for precision board-level work.
Tin 0.7mm wire is another highly popular diameter that sits in the sweet spot for a vast range of general-purpose electronics assembly. It is particularly well-suited for:
Larger SMD Components: Such as 1206 packages, SOT-23 transistors, and small outline integrated circuits (SOICs).
Through-Hole Components with Standard Lead Spacing: For components like resistors, diodes, and headers on boards with moderate thermal mass.
Prototyping and Hobbyist Projects: It provides enough solder flow for quick work without being too difficult to control for beginners.
Perhaps the most universally used diameter, tin 0.8mm wire is the true workhorse for general manufacturing and repair. Its applications are extensive:
Through-Hole Component Assembly: Excellent for soldering the majority of through-hole components, from resistors and capacitors to DIP IC sockets and connectors.
Larger SMD Components: Suitable for electrolytic capacitors, larger transistors, and connectors on PCBs.
Cable and Connector Soldering: Effective for soldering wires to pins on connectors like DB9, USB ports, and terminal blocks.
The tin 0.8mm diameter offers an optimal feed rate for hand soldering, allowing for efficient joint completion with minimal stops and starts.
Tin 0.9mm wire begins to transition into the domain of higher-volume joints and components with greater thermal mass. It is an excellent choice for:
Larger Through-Hole Components: Such as high-wattage resistors, large capacitors, and transformers.
Ground Planes and Heatsinking Connections: Where the PCB copper pour absorbs heat rapidly, a slightly thicker wire can deliver more solder alloy and flux per second, improving heat transfer and joint formation.
Sturdier Mechanical Connections: For soldering wires to lugs, tabs, and other high-stress points.
Tin 1mm solder wire is a robust diameter designed for applications where solder volume and thermal delivery are key. It is typically used for:
Heavy-Gauge Wire Soldering: Attaching power cables, speaker wires, and other thick conductors to terminals or PCBs.
Chassis and Shield Grounding: Creating large, high-integrity ground connections that require significant solder mass.
Repairing Lifted Pads or Traces: Building up solder to re-establish a connection or add mechanical strength.
When efficiency on large joints is a priority, tin 1.2mm wire shines. Its increased cross-sectional area allows for rapid filling of big joints, making it ideal for:
Power Electronics: Soldering the leads of TO-220, TO-247, or other large power semiconductors to boards or heatsinks.
Bus Bar and High-Current Connections: In power supplies, motor controllers, and battery management systems.
Automotive and Maritime Electrical Repairs: Where wire gauges are thick and environmental durability is crucial.
Tin 1.6mm wire is a specialist diameter used when maximum solder deposition speed is required for very large thermal masses. Applications include:
Large Lugs and Terminals: In industrial control panels, power distribution boxes, and high-power audio equipment.
Plumbing and Radiator Repairs (Non-Potable Water): While not for electronics, this showcases its use for large, non-precision joints.
Certain Types of Stained Glass and Metalwork.
As the largest standard diameter commonly available, tin 1.8mm wire is reserved for the most demanding, high-volume soldering tasks. It is employed in:
Industrial-Grade Power Connections: For very large terminals and bus bars.
Heavy-Gauge Cable Fabrication: Such as for welding equipment or large battery interconnects.
Specialist Metal Joining Applications: Where a large fillet of Tin 60 40 is required for non-structural bonding.
It is important to note that using tin 1.6mm and tin 1.8mm wire effectively requires a high-wattage soldering iron (or gun) capable of delivering sustained heat without a significant temperature drop.
A simple rule of thumb is to select a solder wire diameter that is equal to or slightly smaller than the diameter of the component lead or the width of the PCB pad you are soldering. For instance:
Small SMD pads (e.g., for 0603 parts): Use tin 0.5mm or tin 0.6mm.
Standard IC and through-hole pads: Use tin 0.7mm or tin 0.8mm.
Large power device pads or terminals: Use tin 1mm or tin 1.2mm.
Always consider the heat-sinking capability of the joint. A large ground plane will cool the solder iron tip rapidly. For such joints, a thicker wire like tin 0.9mm or tin 1mm can be more effective than a thinner one, as it delivers more alloy and flux with less feeding effort. Ensure your soldering iron has sufficient wattage and thermal recovery to melt the thicker wire efficiently; a 60W iron is a minimum for diameters above 1mm.

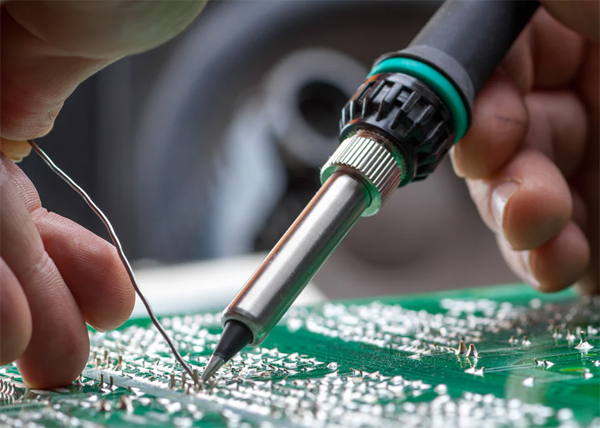

For Tin 60 40, a soldering iron tip temperature between 320°C and 350°C (608°F - 662°F) is generally optimal. This provides a quick melt without excessive oxidation. The key technique is to apply the tip to both the pad and the lead simultaneously to heat them evenly, then feed the solder wire into the junction of the tip and the heated joint, not directly onto the iron tip. Allow the molten solder to flow and wet the surfaces fully before removing the iron.
To maintain the quality of your Tin 60 40 solder wire, store it in a cool, dry place. Avoid contamination from oils or other metals. Keep different diameters clearly labeled to prevent mix-ups on the workbench. For the finest wires (tin 0.5mm, tin 0.6mm), handle the spool carefully to avoid kinks and tangles that can break the delicate wire.
The journey from a schematic to a functional, reliable circuit board is paved with countless precise solder joints. The selection of Tin 60 40 alloy provides a foundation of proven performance and reliability. However, by strategically choosing the correct diameter—whether it's the microscopic precision of tin 0.5mm for a chip-scale package, the versatile reliability of tin 0.8mm for daily tasks, or the robust power of tin 1.6mm for high-current terminals—you elevate your work from mere assembly to a craft. Understanding the specific roles of tin 0.6mm, tin 0.7mm, tin 0.9mm, tin 1mm, tin 1.2mm, and tin 1.8mm empowers you to tackle any electronics assembly challenge with confidence, ensuring each joint is not only electrically sound but also mechanically perfect. Invest in a range of diameters, master their applications, and watch the quality and efficiency of your soldering work soar.
