In the intricate world of electronics manufacturing and repair, the quality of solder can make or break a project. Among the myriad options available to engineers and technicians, no clean tin wire stands out for its efficiency and reliability. Specifically, a 60 40 rosin core tin wire represents a classic and trusted formulation, combining 60% tin and 40% lead with a rosin flux core. This combination is engineered for superior performance in creating strong, conductive, and reliable electrical joints. The "no clean" or NC tin wire designation is particularly crucial in modern assembly lines, as it significantly reduces post-soldering cleanup steps, saving time and cost without compromising on joint integrity. This article serves as a comprehensive guide to understanding, selecting, and utilizing this essential material for optimal results in electronics assembly.

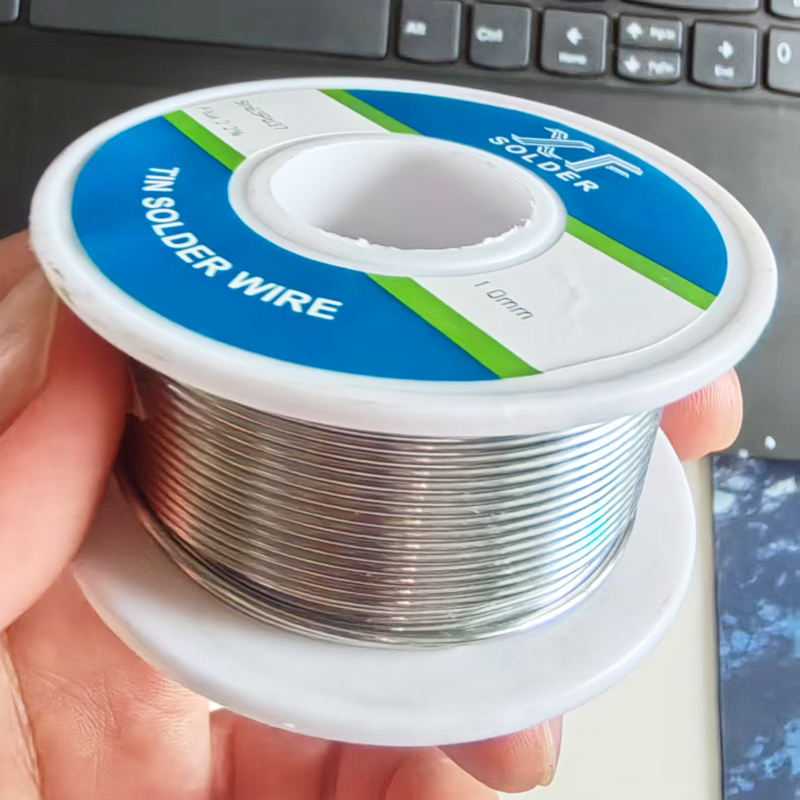

At its heart, rosin core tin wire is a composite material. The wire itself is an alloy, typically the ubiquitous 60 40 tin (60% tin, 40% lead). This specific ratio offers a eutectic or near-eutectic point, meaning it melts and solidifies at a single, relatively low temperature (around 188°C or 370°F), which is ideal for preventing thermal damage to sensitive components. The "core" refers to the flux embedded in a hollow channel running through the center of the wire. This flux is a specially formulated rosin core tin variant, derived from pine tree sap, which acts as a cleaning and wetting agent during the soldering process.
The term no clean tin wire for electronics signifies a revolutionary advancement. Traditional rosin fluxes often left behind corrosive and conductive residues that required thorough cleaning with solvents. NC tin wire, however, utilizes a flux formulation that leaves behind a minimal, non-corrosive, and non-conductive residue after soldering. This residue is typically benign, clear, and does not necessitate removal for the functional reliability of the assembly, except perhaps for aesthetic reasons or in extreme environmental conditions. This property is indispensable for high-speed production and field repairs.

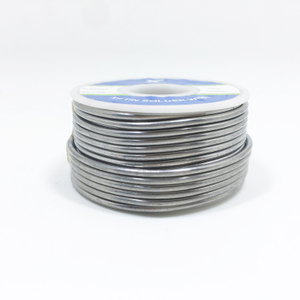

The 60 40 rosin core tin alloy is a time-tested champion for general-purpose electronics soldering. The balanced composition provides an excellent combination of properties:
Low Melting Point: The eutectic characteristic ensures a quick transition from liquid to solid, reducing the risk of "cold joints" and component overheating.
Excellent Wetting: The alloy flows smoothly and adheres effectively to copper, brass, and tin-plated surfaces, creating strong metallurgical bonds.
Ideal Viscosity & Surface Tension: In its molten state, 60 40 tin wire has the perfect fluidity to form neat fillets without bridging gaps or creating solder balls.
Reliability: Joints made with this alloy are known for their mechanical strength and long-term electrical conductivity.
The integrated rosin core tin wire flux is not merely an additive; it's a critical performance enhancer. As the solder melts, the rosin flux activates, performing three vital functions:
Cleaning: It removes light oxidation and contaminants from the metal surfaces to be joined.
Protecting: It coats the heated surfaces, preventing further oxidation during the soldering process.
Promoting Wetting: It dramatically lowers the surface tension of the molten solder, allowing it to spread and bond intimately with the workpiece.
This built-in action makes 60 40 rosin core tin wire for electronics a complete, one-step soldering solution.
This versatile solder is a workhorse across numerous sectors of electronics work. Its primary application is in no clean tin wire for electronics assembly processes where post-solder cleaning is undesirable or logistically challenging.
Printed Circuit Board (PCB) Assembly: From through-hole component soldering to touch-up and rework on surface-mount technology (SMT) boards, this wire is fundamental. The no clean property is especially valuable in automated wave soldering and selective soldering processes.
Electronics Repair and Rework: Technicians repairing consumer electronics, industrial controls, or automotive modules rely on 60 40 rosin core tin wire for its predictable performance and strong joints. The NC flux eliminates the need for messy cleanup in hard-to-reach areas.
Prototyping and Hobbyist Projects: Makers, engineers, and students benefit from its ease of use and consistent results. The rosin core tin provides all the necessary chemistry in one tool, simplifying the workflow.
Wire Tinning and Cable Assembly: Tinning stranded wire ends to prevent fraying and ensure good connectivity in terminals is a common use. The flux ensures the solder wicks thoroughly into the wire strands.
No clean 60/40 rosin core tin wire comes in various specifications to match the job:
Diameter (Gauge): Common sizes range from 0.5mm (very fine for precision SMT work) to 1.5mm (for large through-hole joints or tinning thick wires). Selecting the right diameter ensures proper heat transfer and solder deposition control.
Flux Content: Expressed as a percentage by weight (e.g., 1.8%, 2.2%, 3.3%). Higher flux content is better for oxidized or difficult-to-solder surfaces but may leave more residue. A standard 2.2% core is often sufficient for most electronics assembly tasks.
Alloy Verification: Always source 60 40 tin wire from reputable suppliers who provide material certifications to ensure the alloy composition is precise, as impurities can severely affect joint quality.
The specific chemistry of the NC flux is its defining feature. High-quality NC tin wire uses a mild, refined rosin (often a WW or RMA type) combined with activators that decompose or become inert at soldering temperatures. The residue is hard, transparent, and non-tacky, ensuring it does not attract dust or cause electrical leakage under normal operating conditions.
Successful soldering begins before the iron is heated. Ensure components and PCB pads are as clean as possible. While the rosin core tin flux can handle minor oxidation, heavily contaminated surfaces will lead to poor joints. Use a temperature-controlled soldering iron set to an appropriate temperature—typically between 300°C and 350°C (572°F - 662°F) for 60 40 rosin core tin wire. A chisel or conical tip should be clean and well-tinned.
Apply Heat: Touch the soldering iron tip to both the component lead and the PCB pad simultaneously to heat them evenly.
Apply Solder: Feed the 60 40 rosin core tin wire to the junction of the heated workpiece and the tip—not directly to the iron tip itself. The heat will melt the wire, and the flux will immediately activate.
Allow Flow & Remove: Let the molten solder flow to cover the joint completely, forming a concave fillet (shiny and smooth for 60 40 tin). Once formed, remove the solder wire first, then the iron, holding the joint steady until it solidifies.
No Clean Inspection: After cooling, inspect the joint. The residue from quality no clean tin wire should be minimal, hard, and non-corrosive. It is generally acceptable to leave it in place.
Despite the advantages of no clean tin wire for electronics, it is crucial to remember that 60/40 solder contains lead. Always follow safety protocols:
Work in a well-ventilated area to avoid inhaling fumes, even from no-clean flux.
Wash hands thoroughly after handling solder, especially before eating.
Comply with local regulations regarding lead-containing solders, such as RoHS exemptions for certain professional and critical applications. For consumer electronics manufacturing destined for the EU and other regions, lead-free alternatives are often mandated.
Lead-free alloys (like SAC305) have higher melting points, which can be challenging for heat-sensitive components and require more powerful equipment. They can also exhibit poorer wetting than traditional 60 40 tin wire. The no clean tin wire formulations for lead-free solder exist but can be more sensitive to process parameters. The 60/40 rosin core tin remains preferred for its unparalleled workability and reliability in non-RoHS applications.
Acid Core: Used for plumbing and metalwork, never for electronics. It is highly corrosive and will damage PCBs.
Water-Soluble Flux: Offers powerful cleaning but requires thorough post-solder washing, adding process steps. NC tin wire eliminates this requirement.
Other "No Clean" Formulations: Some are synthetic or halide-free. Rosin-based no clean fluxes are often considered the benchmark for performance and residue safety in the electronics industry.
In conclusion, No Clean (NC Flux Type) 60/40 Rosin Core Tin Wire for Electronics Assembly remains an indispensable tool in the electronics industry. Its perfect storm of a reliable 60 40 tin alloy, effective integrated rosin core tin flux, and the game-changing no clean property delivers a blend of performance, efficiency, and quality that is hard to surpass. For applications not constrained by lead-free regulations, from rapid prototyping and field service to many professional manufacturing lines, this solder wire provides consistent, high-quality, and durable solder joints with a streamlined workflow. Understanding its properties, applications, and correct usage techniques, as outlined in this guide, empowers professionals and enthusiasts alike to achieve superior results in all their electronic soldering endeavors.
