In the intricate world of electronics manufacturing, the integrity of every connection hinges on the quality of the solder. Among the myriad of options available, 60 40 rosin solder wire remains a cornerstone material, revered for its reliable performance and eutectic properties. This comprehensive guide delves into the sophisticated production process of this essential material and highlights XF Solder's position as a premier 60 40 rosin solder manufacturer committed to excellence and innovation.
Before exploring the manufacturing intricacies, it is crucial to understand what sets this alloy apart. 60 40 rosin solder is an alloy composed of 60% tin and 40% lead. Its defining characteristic is its eutectic nature, meaning it melts and solidifies at a single, precise temperature—approximately 183°C (361°F). This eliminates a pasty, semi-solid state, allowing for clean, reliable joint formation with a significantly reduced risk of cold solder joints. The "rosin" component refers to the flux core, a formulation based on rosin extracted from pine trees. This flux is crucial for the soldering process, as it cleans the metal surfaces of oxides and prevents re-oxidation during heating, ensuring a strong, conductive metallurgical bond.
The rosin core is not merely an additive; it is the active agent that enables successful soldering. As the 60 40 rosin solder wire is heated, the flux melts first, flowing onto the workpiece to prepare the surfaces. It chemically reduces existing oxides and forms a protective blanket, shielding the molten solder from the air. This process is vital for achieving the shiny, smooth, and concave fillets that signify a high-quality solder joint.
The creation of high-performance solder wire is a symphony of metallurgical science and precision engineering. At XF Solder, our status as a trusted 60 40 rosin solder wire manufacturer is built upon a rigorous, multi-stage production process that ensures consistency, purity, and performance in every spool.
The journey begins with the procurement of high-purity raw materials. We source Grade A tin and lead with purity levels exceeding 99.9%. These metals are precisely weighed according to the 60/40 ratio and charged into a computer-controlled, high-temperature alloying furnace. The mixture is heated to a temperature well above its melting point in an inert atmosphere to prevent oxidation. The molten alloy is then homogenized through continuous stirring to ensure a perfectly uniform distribution of tin and lead throughout the entire batch. Samples are drawn for spectroscopic analysis to verify the exact chemical composition before proceeding.
Parallel to the alloying process, our chemical engineers prepare the rosin flux. We use specially treated and refined rosin as the base, which is then blended with carefully selected activators, solvents, and stabilizers. The exact formulation is a proprietary secret, optimized to provide superior wetting, high activity for difficult-to-solder surfaces, and minimal corrosive residue. The flux is mixed in temperature-controlled vats to achieve a perfectly consistent viscosity, which is critical for the subsequent casting process.
The molten, verified 60/40 alloy is transferred to a continuous casting machine. Here, it is poured into a vertical, water-cooled mold where it solidifies into a long, continuous rod. This rod is then drawn through a series of dies to reduce its diameter to a specific, precise size. Simultaneously, the prepared flux is loaded into a pressurized reservoir. The solid alloy rod is then fed through the center of a custom extruder, where the flux is injected under high pressure to fill the annular space around it, creating a perfectly concentric "rod-in-tube" structure. This method is superior to alternative processes as it guarantees a consistent and uninterrupted flux core along the entire length of the wire.
The flux-cored rod now undergoes a series of drawing operations to achieve its final diameter (e.g., 0.8mm, 1.0mm, etc.). It is pulled through progressively smaller tungsten carbide or diamond dies. This cold-working process hardens and stresses the metal. To maintain the solder's malleability and prevent brittleness, the wire passes through inline annealing ovens. These ovens apply precise thermal cycles to relieve the internal stresses, making the wire soft, flexible, and easy to handle during manual or wave soldering applications. This step is crucial for a 60 40 rosin solder China producer aiming for global quality standards.

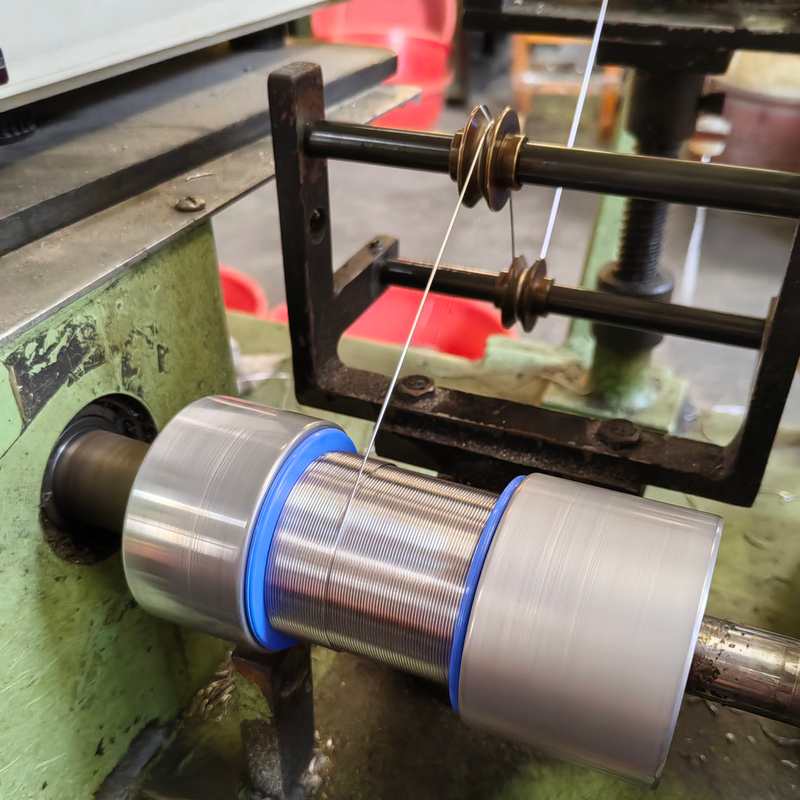

The final diameter wire is wound onto spools by automated, tension-controlled spooling machines. Consistent tension is key to preventing tangles and ensuring smooth feeding from the dispenser. Before packaging, every batch undergoes a final, rigorous quality assurance protocol. This includes:
Dimensional Checks: Verifying wire diameter and flux core percentage.
Flux Activity Testing: Ensuring the flux meets specified activity levels.
Solderability Testing: Confirming the wire wets and spreads correctly on standardized test coupons.
Residue Inspection: Checking for low residue and non-corrosive properties.
Only after passing all these checks is the product labeled and packaged for shipment, ready to support electronics production lines worldwide.
In a global market saturated with suppliers, XF Solder has distinguished itself as a leader and a reliable 60 40 rosin solder wire China source. Our commitment extends beyond mere production; we are partners in our clients' success.
As a dedicated 60 40 rosin solder China manufacturer, our philosophy is rooted in consistency. We understand that in automated assembly lines, variability in solder wire can lead to catastrophic production stoppages. Our state-of-the-art manufacturing facilities and stringent process controls are designed to deliver a product that performs identically, spool after spool, batch after batch.
The electronics industry is not static, and neither are we. Our robust Research and Development division continuously explores new flux chemistries and alloy refinements. We work closely with clients to develop custom 60 40 rosin solder formulations tailored to specific applications, whether it's for extreme environments, specialized cleaning processes, or unique wetting requirements.
Strategically located in China, the world's manufacturing hub, XF Solder is ideally positioned to serve both domestic and international markets. We have streamlined our supply chain and logistics operations to ensure timely and cost-effective delivery, making us a efficient and strategic 60 40 rosin solder wire manufacturer for businesses across the globe.
The production of 60 40 rosin solder wire is a complex blend of material science and precision engineering. From the initial alloying to the final spooling, each step is critical to the performance of the end product. XF Solder has mastered this process, establishing itself as a premier 60 40 rosin solder China manufacturer known for quality, reliability, and technical expertise.
When you choose XF Solder, you are not just purchasing a spool of wire; you are investing in a product backed by rigorous testing, a commitment to innovation, and a partnership dedicated to supporting your manufacturing excellence. For a 60 40 rosin solder wire solution you can trust, look to the experts at XF Solder.
