In the world of electronics manufacturing and repair, the quality of your solder joint directly determines the reliability and longevity of your work. Among the vast array of soldering alloys available, the Tin Solder 50% composition—specifically the Tin Solder Pb50Sn50 variant—remains a cornerstone material for both general-purpose and precision electronics welding. This 50/50 tin-lead alloy offers a unique balance of melting characteristics, wetting ability, and mechanical strength that makes it indispensable for professionals, hobbyists, and industrial production lines alike.
Our premium Tin Solder 50 50 for Electronics is engineered to meet the most demanding requirements of modern circuit board assembly, component tinning, and electrical connection fabrication. Unlike cheaper alternatives that compromise on purity or flux content, this product delivers consistent, repeatable results with minimal defects. Whether you are hand-soldering through-hole components or working on automated wave-soldering systems, the Tin Solder with Resin Core ensures clean, shiny joints with excellent electrical conductivity and mechanical resilience.
The Tin Solder 50% alloy sits at a sweet spot in the tin-lead phase diagram. With a melting point of approximately 183-215°C (361-419°F), it provides a wide plastic range that allows for excellent gap-filling capabilities—a critical property when soldering components with irregular lead spacing or oxidized surfaces. The lead content contributes to lower surface tension, improving the alloy’s ability to flow into tight spaces, while the tin content ensures good wetting on copper, brass, and most common electronic substrates.
For applications where thermal cycling resistance is paramount, the Tin Solder Pb50Sn50 exhibits superior creep resistance compared to higher-tin alloys, making it a preferred choice for automotive electronics, power supplies, and industrial controls. Furthermore, its cost-effectiveness relative to silver-bearing or lead-free alternatives makes it an economical solution for high-volume production without sacrificing joint integrity.
We understand that different soldering applications require different wire gauges. That is why our Tin Solder 50% is available in two industry-standard diameters:
Tin Solder Sn50 0.8mm: This fine-gauge wire is ideal for precision electronics welding on densely populated PCBs, surface-mount devices (SMDs), fine-pitch ICs, and delicate components. The 0.8mm diameter allows for controlled deposition of solder, minimizing the risk of bridging and reducing clean-up time. It is the go-to choice for mobile device repair, laptop motherboard work, and miniature connector soldering.
Tin Solder 50% 2.0mm: For heavier-duty tasks requiring more solder volume per linear inch, the 2.0mm diameter wire is your best option. This thicker gauge excels in soldering large gauge wires, battery terminals, grounding straps, chassis connections, and heavy power components. The higher feed rate of this diameter significantly increases productivity in high-throughput assembly environments.
To accommodate everything from occasional repair jobs to full-scale manufacturing, we offer the Tin Solder 50% in four convenient reel sizes:
Tin Solder 50% 100g – Perfect for prototype labs, educational institutions, and mobile service technicians who need portability without excess bulk. This lightweight reel fits easily into toolkits and is ideal for low-to-medium usage scenarios.
Tin Solder 50% 1/2lb (approximately 227g) – A balanced option for workshop benches and repair centers that perform regular soldering operations. This size offers a good compromise between cost-per-gram and handling convenience.
Tin Solder 50% 1lb (454g) – The most popular choice for professional assembly lines and dedicated repair facilities. This reel minimizes downtime associated with spool changes while remaining manageable for daily use.
Tin Solder 50% 500g – Designed for high-volume production environments, this industrial-sized reel reduces packaging waste and per-unit cost. It is the economical choice for contract manufacturers, automotive harness producers, and large-scale electronics OEMs.
Our Tin Solder with Resin Core is not merely a wire of alloy—it is a carefully engineered system that combines filler metal with an internal flux. The resin core, typically composed of modified rosin (colophony) blended with activators, performs several critical functions during the electronics welding process:
Oxide Removal: The resin flux chemically reduces metal oxides on both the component lead and the PCB pad, exposing clean metallic surfaces for proper intermetallic bond formation.
Surface Tension Reduction: By lowering the surface tension of the molten Tin Solder Pb50Sn50, the resin promotes superior wetting and spreading, ensuring that the alloy fills the joint area completely.
Protection from Re-oxidation: As the resin melts and flows ahead of the solder, it creates a protective blanket that shields the molten metal from atmospheric oxygen, preventing dross formation and dull joints.
Improved Thermal Transfer: The flux aids in heat transfer from the soldering iron to the joint, allowing for faster, more efficient soldering with reduced dwell time—critical for heat-sensitive components.
The resin core in our Tin Solder 50 50 for Electronics is formulated to be non-corrosive and leaves a residue that is easily cleaned with standard solvents or aqueous cleaning systems. For applications where no-clean soldering is preferred, the residue is minimally conductive and can be left in place for most consumer electronics, provided visual inspection standards permit. The activation temperature of the resin is well-matched to the melting range of the Tin Solder 50% alloy, ensuring that fluxing action occurs precisely when needed—neither prematurely burning off nor becoming sluggish at the soldering temperature.
The Tin Solder Sn50 0.8mm and 2.0mm variants exhibit a pasty range from 183°C to 215°C, providing a working window of approximately 32°C. This relatively wide plastic range is beneficial for hand-soldering techniques, as it allows the operator to "wipe" the joint for optimal fillet shape. The wettability, measured by spread factor on copper, consistently exceeds 85% when tested under standard IPC guidelines, guaranteeing that you will achieve robust, void-free connections.
After solidification, the Tin Solder Pb50Sn50 joints demonstrate:
Tensile strength: ~45 MPa (at room temperature)
Shear strength: ~35 MPa
Elongation: ~25% (indicating good ductility for thermal stress absorption)
Electrical resistivity: ~0.14 μΩ·m (ensuring minimal voltage drop across the joint)
These properties make this alloy exceptionally suited for environments where vibration, thermal cycling, or mechanical shock are present. Unlike brittle lead-free alternatives, the Tin Solder with Resin Core in this 50/50 ratio provides a forgiving, reliable connection that maintains integrity over decades of service.
To preserve the efficacy of the resin core, we recommend storing all reels—whether Tin Solder 50% 100g, Tin Solder 50% 1/2lb, Tin Solder 50% 1lb, or Tin Solder 50% 500g—in a cool, dry environment below 25°C with relative humidity under 60%. When properly stored, the resin remains active for up to 24 months from the date of manufacture. For prolonged storage, reseal the reel in an anti-static bag with a desiccant pack to prevent moisture absorption, which can lead to "solder balling" or spattering during heating.
For optimal results with the Tin Solder 50 50 for Electronics, set your soldering station to a tip temperature between 320°C and 360°C for standard through-hole work. For the Tin Solder Sn50 0.8mm on fine-pitch SMD components, a slightly lower temperature (300-320°C) combined with a chisel or conical tip will provide excellent control. For heavier connections using the Tin Solder 50% 2.0mm, increase the temperature to 360-380°C to compensate for the larger thermal mass of the joint and the wire itself.
Clean the Surfaces: Use isopropyl alcohol or a dedicated flux remover to eliminate any grease, dirt, or existing oxides from the PCB pads and component leads.
Tin the Iron Tip: Apply a small amount of Tin Solder Pb50Sn50 to the soldering iron tip to improve thermal transfer.
Apply Heat: Place the tip simultaneously against the pad and the lead, heating both surfaces evenly for 1-2 seconds.
Feed the Solder: Introduce the Tin Solder with Resin Core into the joint area—not directly onto the iron tip—allowing the alloy to flow into the gap. The resin core will activate, producing a slight fume and a shiny, fluid puddle.
Withdraw the Wire and Iron: Remove the solder wire first, followed by the iron, while maintaining the joint stationary. The entire process should take 3-5 seconds for most joints.
Inspect: A perfect joint appears concave, shiny, and exhibits a smooth fillet angle. Avoid dull, grainy, or cracked appearances—these indicate insufficient heat or contamination.
Although the Tin Solder 50% alloy is a traditional leaded material, modern safety practices require adequate fume extraction when soldering. The resin core fumes can cause respiratory irritation with prolonged exposure. Always work in a well-ventilated area or use a fume extractor equipped with activated carbon filters. Washing hands after soldering sessions is also highly recommended to prevent lead ingestion.
Q1: Is Tin Solder 50% Pb50Sn50 suitable for lead-free compliant products?
A1: This alloy contains lead and is not RoHS compliant. It should not be used in products destined for the European market or any application where lead-free regulations apply. However, for industrial, military, aerospace, and repair applications where exemptions exist, the Tin Solder 50 50 for Electronics remains fully acceptable and preferred for its reliability.
Q2: How does the resin core differ from a water-soluble or no-clean flux?
A2: Our Tin Solder with Resin Core uses a rosin-based flux that is mildly activated. It leaves a clear or slightly amber residue that is non-conductive and non-corrosive. Unlike water-soluble fluxes, it does not require immediate cleaning to prevent residue corrosion. Compared to no-clean formulations, resin flux provides more aggressive oxide removal, making it better for aged or oxidized components.
Q3: Which diameter should I choose—Tin Solder Sn50 0.8mm or 2.0mm?
A3: Choose the Tin Solder Sn50 0.8mm for precision work on PCBs, SMDs, fine-pitch ICs, and delicate connectors. Choose the Tin Solder 50% 2.0mm for large-gauge wires, power connectors, grounding lugs, and heavy chassis soldering. Many professionals keep both diameters on hand and select based on the joint size and required deposition rate.
Q4: Can I use the Tin Solder 50% 100g reel on a standard soldering station?
A4: Absolutely. The Tin Solder 50% 100g reel is designed to fit most standard spool holders on soldering stations. Its compact size makes it easy to handle and store, while the wire feeds smoothly without tangling, thanks to the precision winding on the reel.
Q5: What is the shelf life of Tin Solder 50% 1/2lb, 1lb, and 500g reels?
A5: Under proper storage conditions (cool, dry, <25°C, <60% RH), the shelf life is 24 months from the manufacturing date. The Tin Solder 50% 1lb and other sizes all maintain their resin activity throughout this period. For longer storage, we recommend vacuum-sealing with desiccant.
Q6: Is there any difference in alloy quality between the Tin Solder 50% 500g industrial reel and the smaller reels?
A6: No. All reels, regardless of weight, are drawn from the same high-purity ingots and feature the identical flux formulation. The Tin Solder 50% 500g is simply a larger spool designed for reduced packaging waste and lower per-gram cost in high-volume applications. You can expect identical performance from the Tin Solder 50% 100g up to the 500g size.
Q7: Does the Tin Solder Pb50Sn50 produce toxic fumes?
A7: The fumes generated during soldering are primarily from the resin core and contain small amounts of aldehydes, ketones, and other organic compounds. While not acutely toxic, these fumes can cause respiratory discomfort. We strongly advise using a fume extractor or working under a local exhaust hood when using any Tin Solder with Resin Core.
Q8: Can I use this Tin Solder 50 50 for Electronics on stainless steel or aluminum?
A8: The Tin Solder 50 50 for Electronics is optimized for copper, brass, tin-plated, and nickel-plated surfaces typical in electronics. It does not wet well on stainless steel or aluminum without specialized fluxes. For those substrates, you would need a different alloy and a highly corrosive acid flux, which is not suitable for electronics.
Every batch of our Tin Solder 50% undergoes rigorous spectrographic analysis to ensure that the tin and lead content are precisely 50/50 by weight, with impurities like bismuth, antimony, and copper kept well below ASTM and J-STD limits. This purity translates directly into fewer voids, less spattering, and brighter, more consistent joints across thousands of solder cycles.

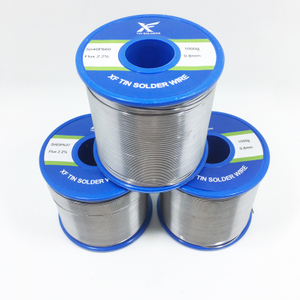

Our Tin Solder with Resin Core is wound on high-quality plastic reels with consistent tension, preventing kinking, birdnesting, or tangling. The Tin Solder Sn50 0.8mm and Tin Solder 50% 2.0mm wires feature a concentric resin core that remains centered within the wire—unlike cheap solders where the core can be off-center, leading to erratic flux delivery. This attention to detail ensures that every centimeter of wire delivers the same flux-to-alloy ratio.
We provide comprehensive datasheets, soldering profiles, and process recommendations for all our products, including the Tin Solder 50% 100g, Tin Solder 50% 1/2lb, Tin Solder 50% 1lb, and Tin Solder 50% 500g reels. If you are transitioning from a different alloy or encountering process issues, our application engineers are ready to assist you with tailored advice.
Whether you are repairing a vintage amplifier, assembling a satellite communication module, or running a high-mix production line, the Tin Solder 50% offers a proven, cost-effective, and forgiving solution. Its wide processing window, excellent wetting, and robust mechanical properties make it a timeless workhorse in the soldering industry. With multiple diameters and reel sizes available, you can standardize on this single alloy for the majority of your electronics welding tasks.
Order your Tin Solder Pb50Sn50 today—choose from Tin Solder Sn50 0.8mm or Tin Solder 50% 2.0mm, and select the reel weight that matches your consumption rate: Tin Solder 50% 100g for portability, Tin Solder 50% 1/2lb for general shop use, Tin Solder 50% 1lb for standard production, or Tin Solder 50% 500g for maximum economy. Experience the difference that premium materials and meticulous quality control make in every single joint. Your circuits deserve nothing less than the best—and that is precisely what our Tin Solder with Resin Core delivers.
