Solder, a fundamental component in the world of electronics and metalwork, plays a pivotal role in creating strong and reliable connections. Soldering is a process that joins two or more metal components by melting a filler material, known as solder, and then allowing it to cool and solidify.
Our factory XF Solder is equipped with cutting-edge technology and staffed by skilled professionals who ensure the production of high-quality solder products. The manufacturing process typically involves the following steps:
Raw Material Selection: The primary raw materials used in solder manufacturing include tin, lead, silver, copper and various flux materials. These materials are carefully selected to meet the desired solder properties.
Alloy Mixing: The chosen raw materials are mixed in precise proportions to create solder alloys with specific melting points and properties.
Melting and Casting: The alloy mixture is melted at high temperatures and then cast into the desired product forms, such as solder wire, solder bars, or solder paste.
Quality Control: Rigorous quality control measures are in place throughout the manufacturing process to ensure the final product's reliability and consistency.
Solder Wire Manufacturing
Solder Bar Manufacturing

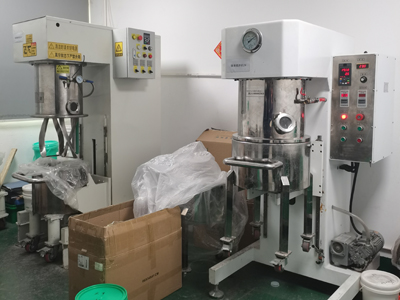

Solder Paste Manufacturing
Solder wire is one of the most commonly used solder products. It comes in various diameters to suit different applications. Solder wire is typically made by coating a wire core with a layer of solder alloy. Here's how to use solder wire effectively:
a. Clean the surfaces to be soldered, removing any dirt, oxidation, or contaminants.
b. Heat the soldering iron or soldering gun to the appropriate temperature for the solder alloy being used.
c. Hold the solder wire against the joint where you want to create the connection.
d. Touch the soldering iron's tip to the joint to melt the solder wire, allowing it to flow evenly over the joint.
e. Remove the solder wire and the soldering iron while ensuring that the joint remains undisturbed until the solder cools and solidifies.
Solder bars are typically used in applications that require larger quantities of solder material. They are solid bars of solder alloy that can be melted and applied to joints. Here's how to use solder bars effectively:
a. Clean and prepare the surfaces to be soldered.
b. Heat solder pot to the appropriate temperature for the solder alloy.
c. Melts down the solder bar and turn it into liquid status.
d. Dip the bottom of assembled PCB into the pot, and make sure the area that need to be soldered touches the molten solder.
e. Allow the joint to cool and solidify before moving or stressing it.
Solder paste is a specialized solder product that combines solder particles with flux in a paste-like consistency. It is often used in surface mount technology (SMT) applications where precision is crucial. Here's how to use solder paste effectively:
a. Clean and prepare the PCB (Printed Circuit Board) or component surfaces.
b. Apply a thin layer of solder paste to the solder pads on the PCB using a stencil or dispenser.
c. Place the SMT components onto the solder paste-covered pads.
d. Heat the PCB using a reflow oven or hot air soldering station. The solder paste will melt and form reliable connections as it cools.
